JBoss EAP Monitoring

JBoss EAP 7.0 Server Monitoring

JBoss Enterprise Application Platform 7 is an open source, cross platform application server to build, deploy and host java applications.

JBoss EAP Monitoring is a process to monitor JBoss EAP system parameters like active and expired sessions, heap memory uses, thread information and number of requests. AppPerfect offers JBoss EAP Server Monitoring solution in the form of AppPerfect Agentless Monitor. AppPerfect's JBoss EAP Server Monitoring is the ideal solution to monitor your JBoss EAP server's resources. JBoss EAP Server Monitoring with AppPerfect is extremely lightweight and adds negligible overhead to target system while monitoring.

This tutorial provides a brief introduction on monitoring JBoss EAP operating system using AgentlessMonitor.


Configuring Agentless Monitor to monitor JBoss EAP's parameters


Following steps will explain how you can configure AppPerfect for JBoss EAP Server Monitoring :

  1. Once you are logged into the Monitor Server you can see the Web-UI from which you can access all the features of the Monitor Server. Click the Monitors link from the top navigation bar. This will take you to Monitors tab. Click on Add button to Add a New JBoss EAP Server Monitor.

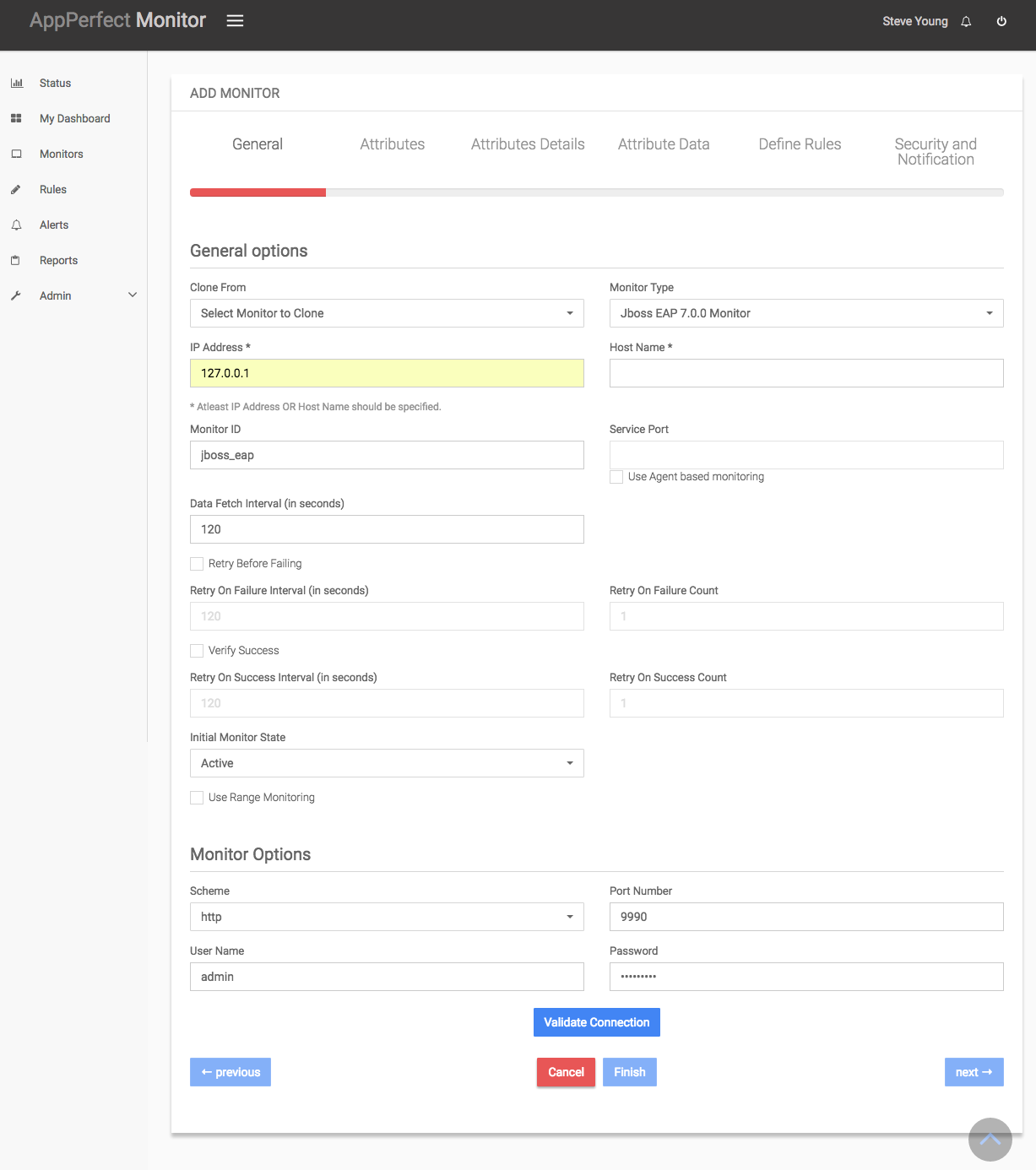

  2. Next Step is to define the JBoss EAP Server Monitor. Provide the IP Address or Host Name of the target JBoss EAP server whose resources needs to be monitored.
  3. Select the Server Monitor Type from the drop down. AppPerfect supports monitoring for Kafka, Hazelcast, RabbitMQ, ActiveMQ and JBoss EAP server. Select the monitor type as JBoss EAP to monitor JBoss EAP resources.
  4. Specify a meaningful identifier for the monitor which will help identify the monitor in future. AppPerfect also supports legacy agent-based architecture. In case you need to use agent-based monitoring, AppPerfect can provide agent for monitoring remote machine, in which case it requires the agent to be deployed on remote machine running at a specific port.
  5. Specify the Data Fetch Interval which represents the time interval for which application should wait before fetching the monitoring data from the device. Monitoring Data will be fetched after every specified fetch interval. The smaller the time interval, the more granular the data. However, smaller time intervals also result in a much larger data set.
  6. You can specify if the monitor should be Active as soon as its added or should it be in suspended state. You can also specify if all the attributes should be monitored or only some predefined attributes should be monitored.
  7. Next Option is to application server specific configuration settings. Provide the user credentials and the port number on which the JBoss EAP server is running. Once you are done providing the credentials, click on Validate Connection button to confirm that monitored server is accessible. JBoss EAP Server Monitoring : Add JBoss EAP Monitor

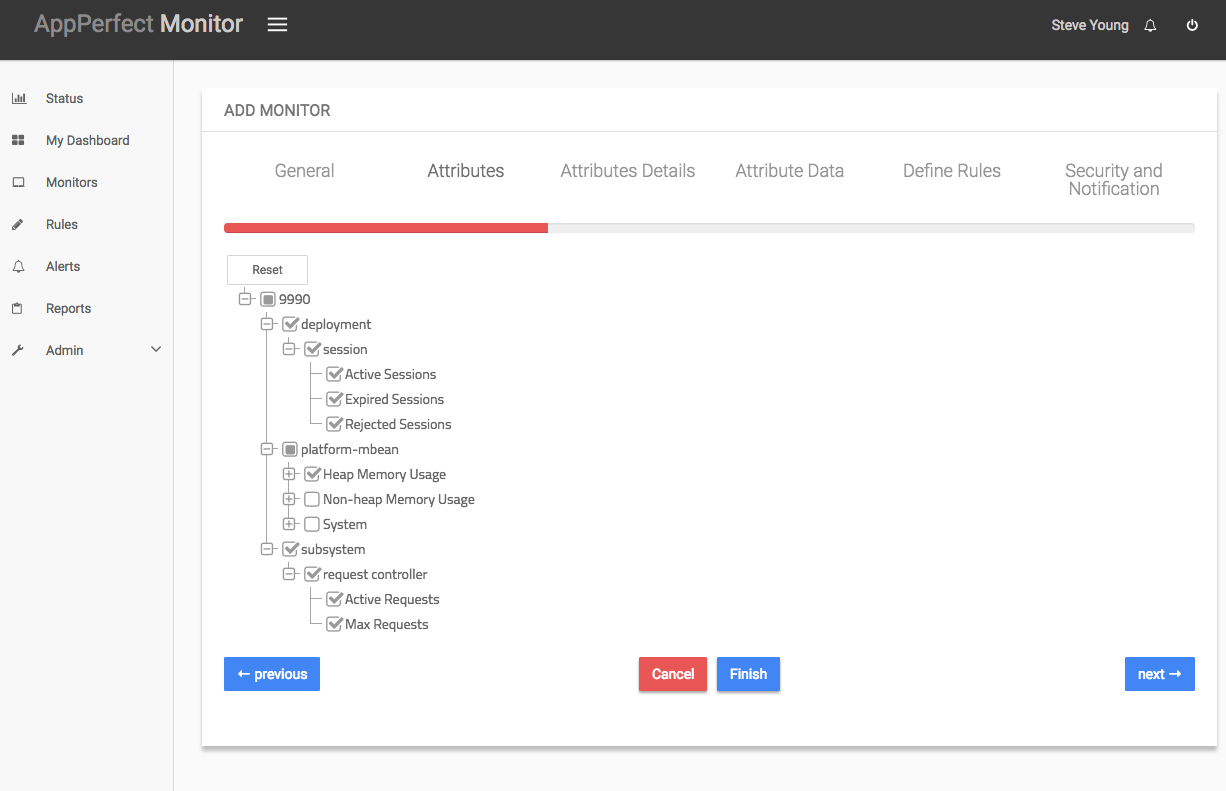

  8. Next Step is to Select the Attributes to monitor. JBoss EAP Server monitoring allows you to monitor crucial parameters such as session information, thread information and number of requests. Select the parameters you need to monitor from the list of attributes shown. JBoss EAP Server Monitoring : Add JBoss EAP Monitor

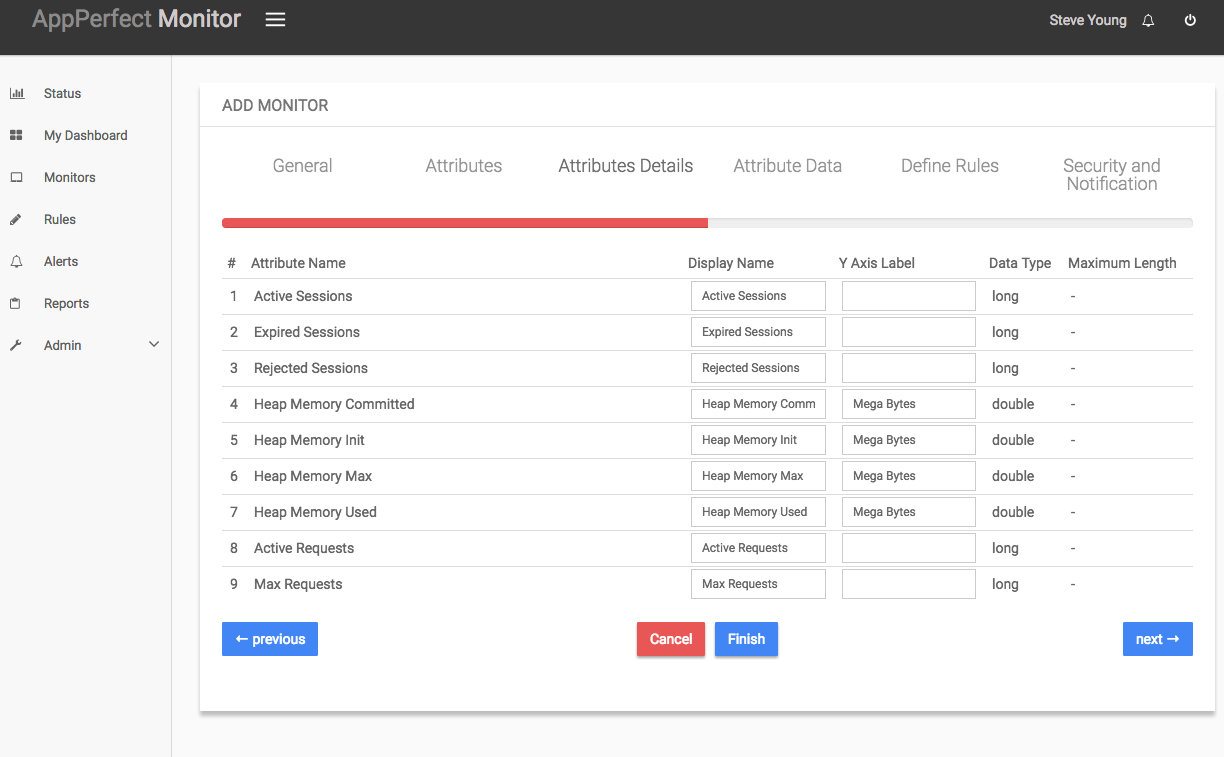

  9. Next step shows the Attribute details of all the selected attributes in the previous step. You can customize the display labels for each of the attributes here. JBoss EAP Server Monitoring : Add JBoss EAP Monitor

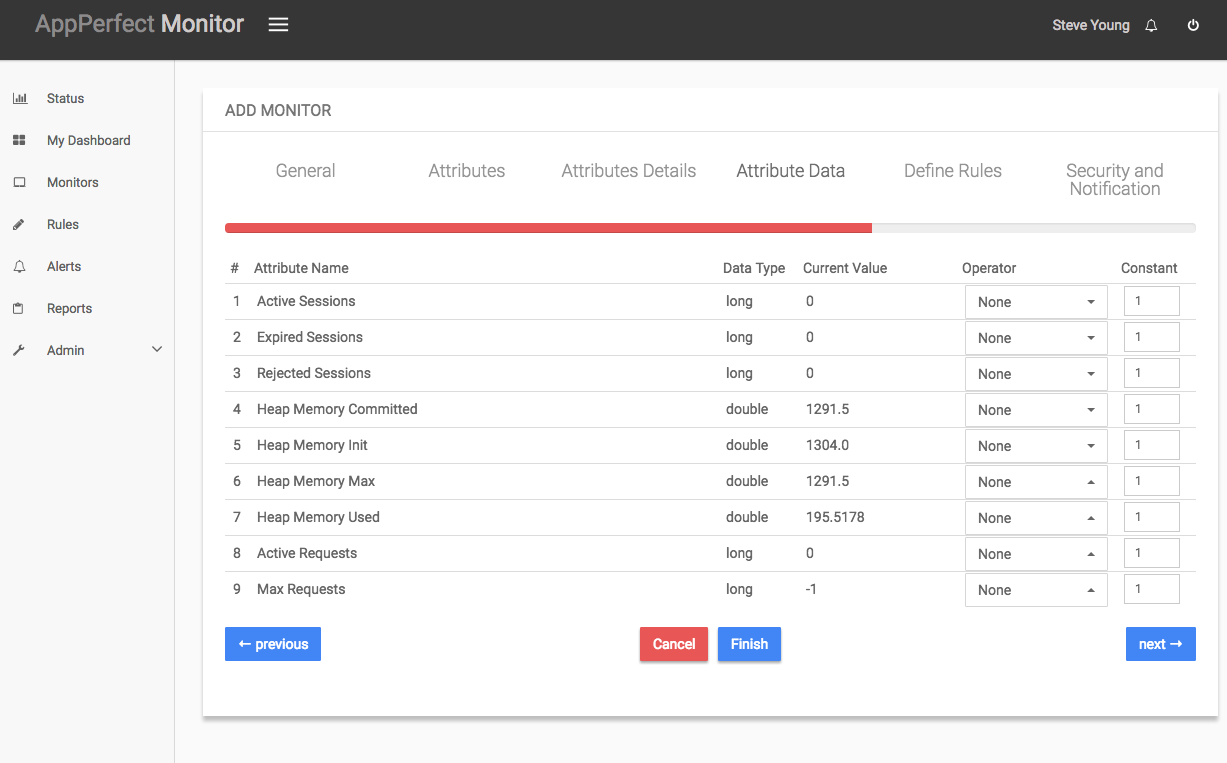

  10. Next step shows the Attribute Data conversion where you can convert the attribute value to required unit. You can configure the operation which should be performed on the attribute value to create the final output value. JBoss EAP Server Monitoring : Add JBoss EAP Monitor
  11. Next step shows the Defining Rules view. This view will provide a list of all numeric attributes. You can select the attributes for which you want to add a rule. A rule is defined as a conditional or threshold value which when exceeds, a notification would be sent. In a typical workflow the monitors extract data from the monitored device and send it to the rules engine. The rules engine evaluates the data to ensure no rule is violated and then sends it to the view manager. However, if a rule is violated, a message is immediately sent to the notification server to alert the user about the rule violation.Rules can be defined at a later stage as well. For details on how you can add/edit rules for the monitor, please see the Rules chapter.
  12. Next step shows the Security & Notification settings. When a rule is violated a notification is sent out to all the concerned users that a particular event has occurred and needs to be dealt with. This process is called notification. AppPerfect provides five modes of notification. They are Email notification, SMS notification, Custom notification, Log notification, Database notification, SNMP Trap notification. For details on each of the supported notification , please see the Notification chapter. In this view you can configure the type of notification which should be sent on Rule violation, Users/Groups to whom notification should be sent and also the subject and details on the notification message.

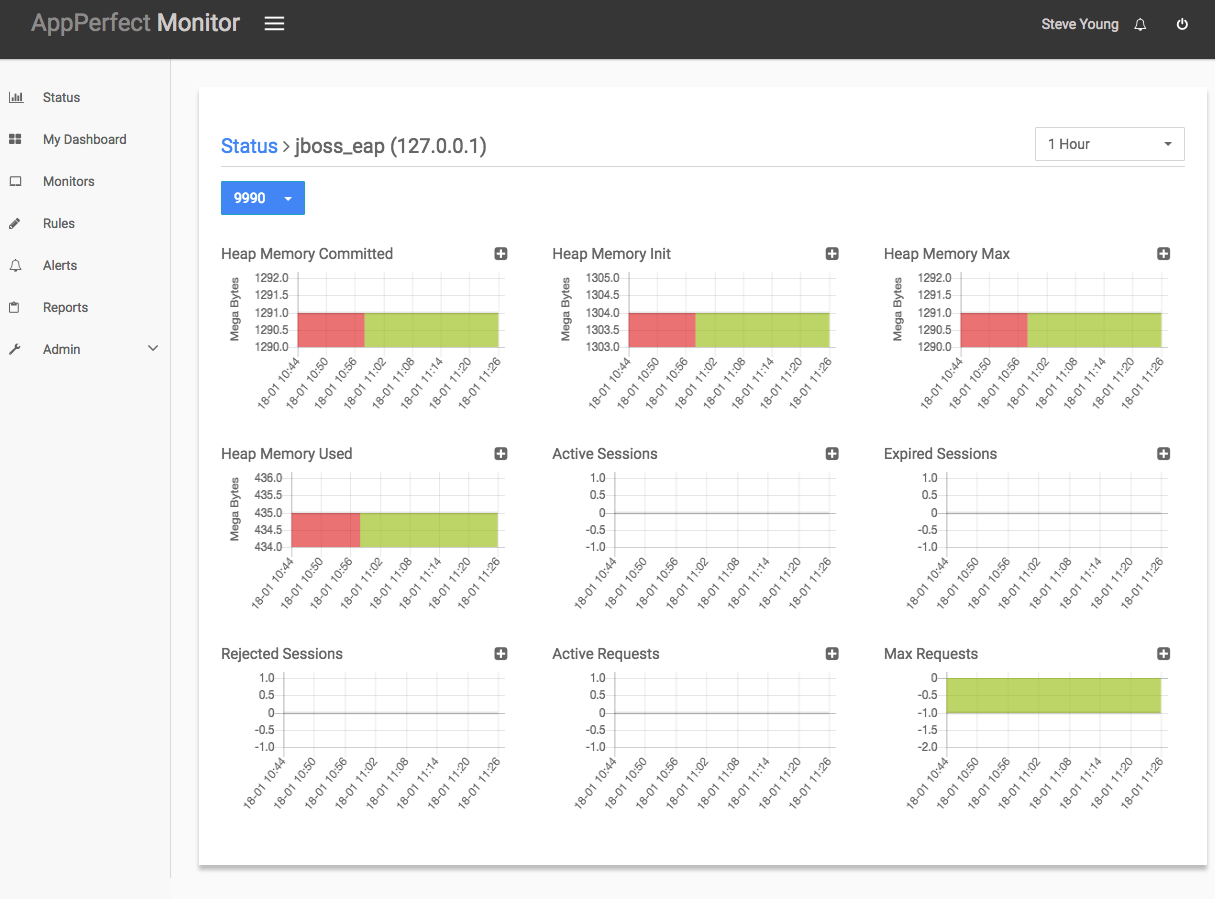

  13. Click on finish button. We are done adding the monitor for JBoss EAP Server Monitoring. Now go to Status tab on left sidebar. Expand the data for IP provided in IP Address while creating the monitor. Expand the JBoss EAP monitor. Click on + icon against the charts that you want to monitor in your Dashboard and you can view the detailed results for each of the attributes being monitored for the target device. JBoss EAP Server Monitoring : Add JBoss EAP Monitor
